In years past, gray cast iron pipe was originally sold with no lining or coating on the pipe's interior. After many years of study, it became apparent that the inside of cast iron pipe might be affected by certain types of water. In this Iron Strong Blog, we will describe tuberculation, why it happened in older iron pipe, and the modern solution for tuberculation.
What is Hot-Dip Coating?

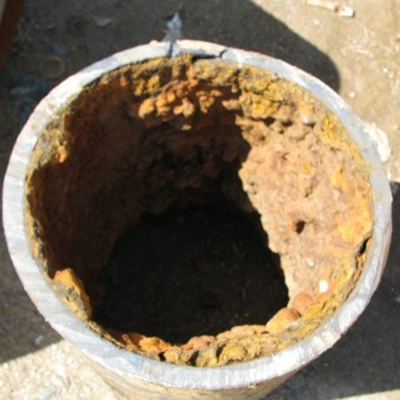

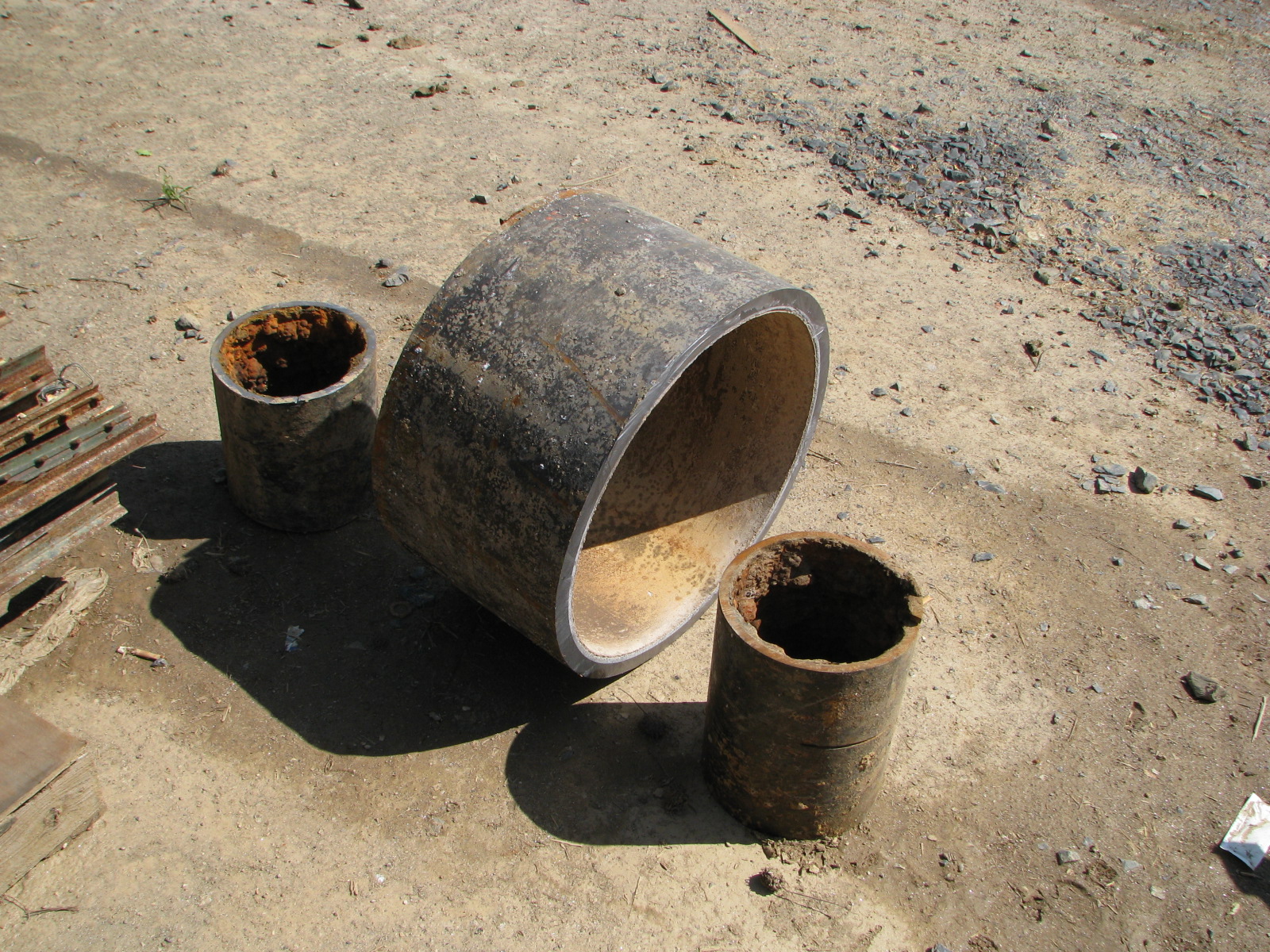

Around 1860, most grey iron pipe was sold with a hot-dip bituminous coating to protect the pipe's interior. After years of providing this hot-dip coating, it was discovered that where soft or acidic waters existed, problems occurred - such as the water turning red or rusty in color and a gradual reduction in flow area through the pipe. Aggressive water penetrated the pinholes in the bituminous inner surface, and internal corrosion in the form of tuberculation occurred.

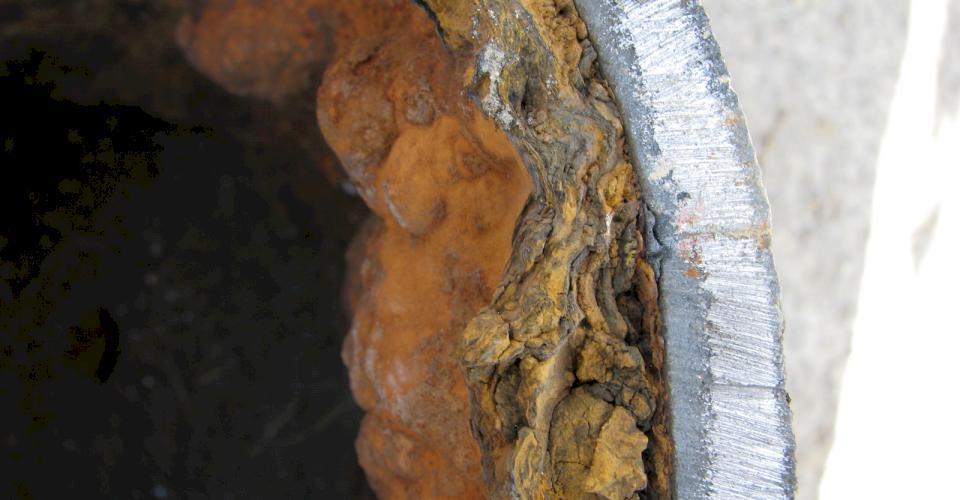

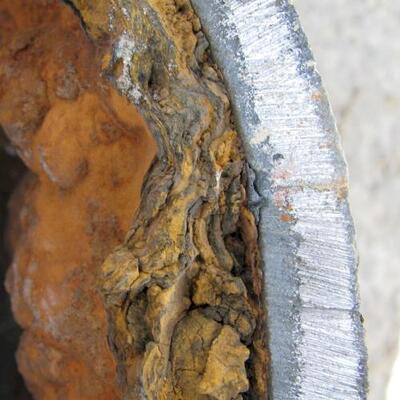

Tuberculation is a bacterial-based oxygen-driven form of corrosion that results in iron oxide precipitation. In other words, the deposition of ferrous oxide (tubercles) from the water, as opposed to the material being “taken away,” is typically how corrosion results and is perceived.
This led the iron pipe industry to develop a better protective mechanism to combat tuberculation. Thus, research and experiments began with cement-mortar as the lining material of choice.
What is Cement-Mortar Lining?
Cement-lined pipe is suitable for potable water, reclaimed water, some sewage service, and other applications. Cement lining is ideal for temperatures up to 212° F unless standard asphaltic coating is furnished, then, the lining is only adequate for temperatures up to 150° F.
In 1922, the first cement-mortar lined gray iron pipe was installed in Charleston, SC. Frictional flow tests conducted on this pipe as recently as 1999 revealed that this original cement-mortar-lined gray iron pipe had retained a Hazen-Williams coefficient (or “C” value) of 130.

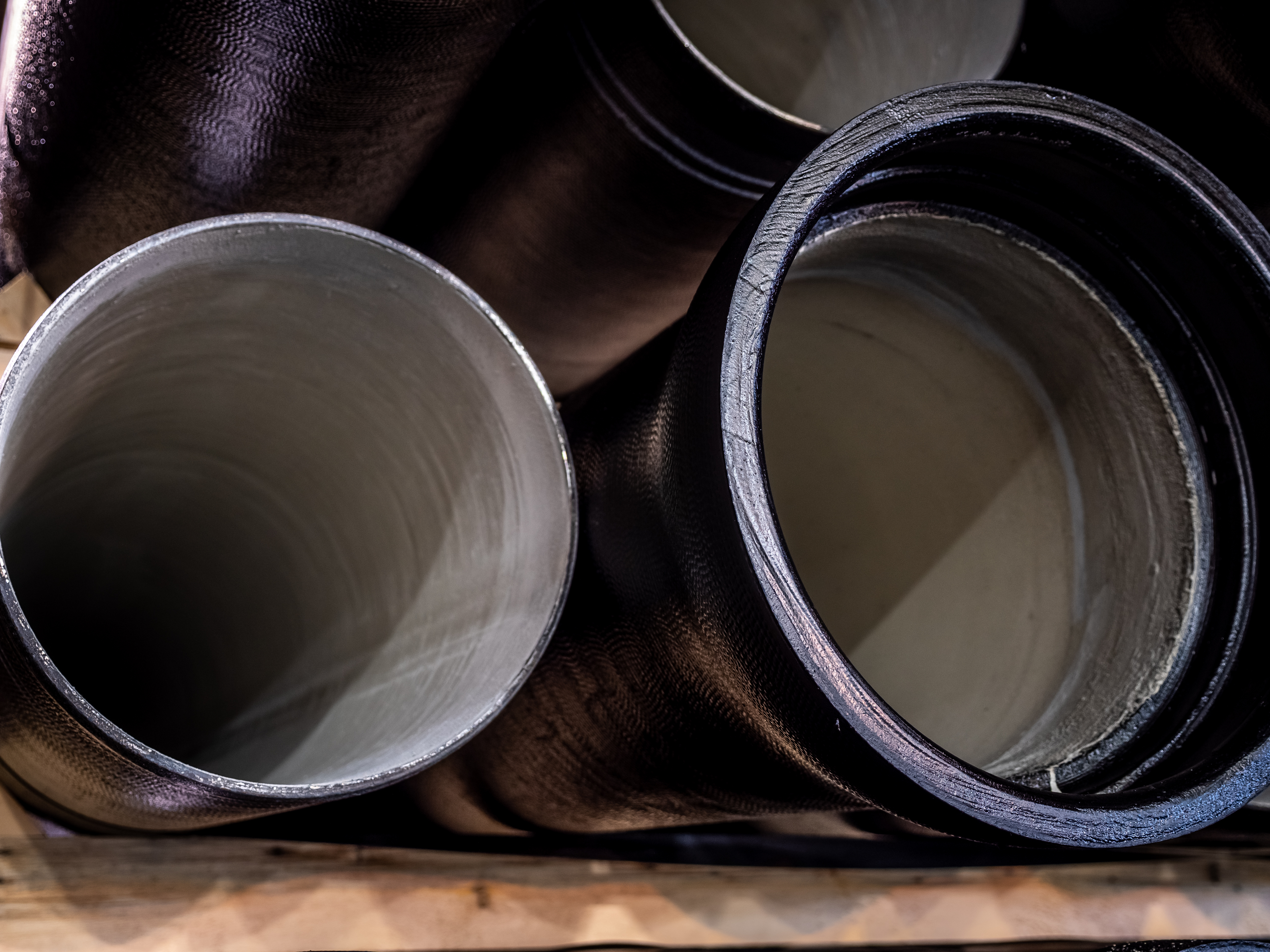

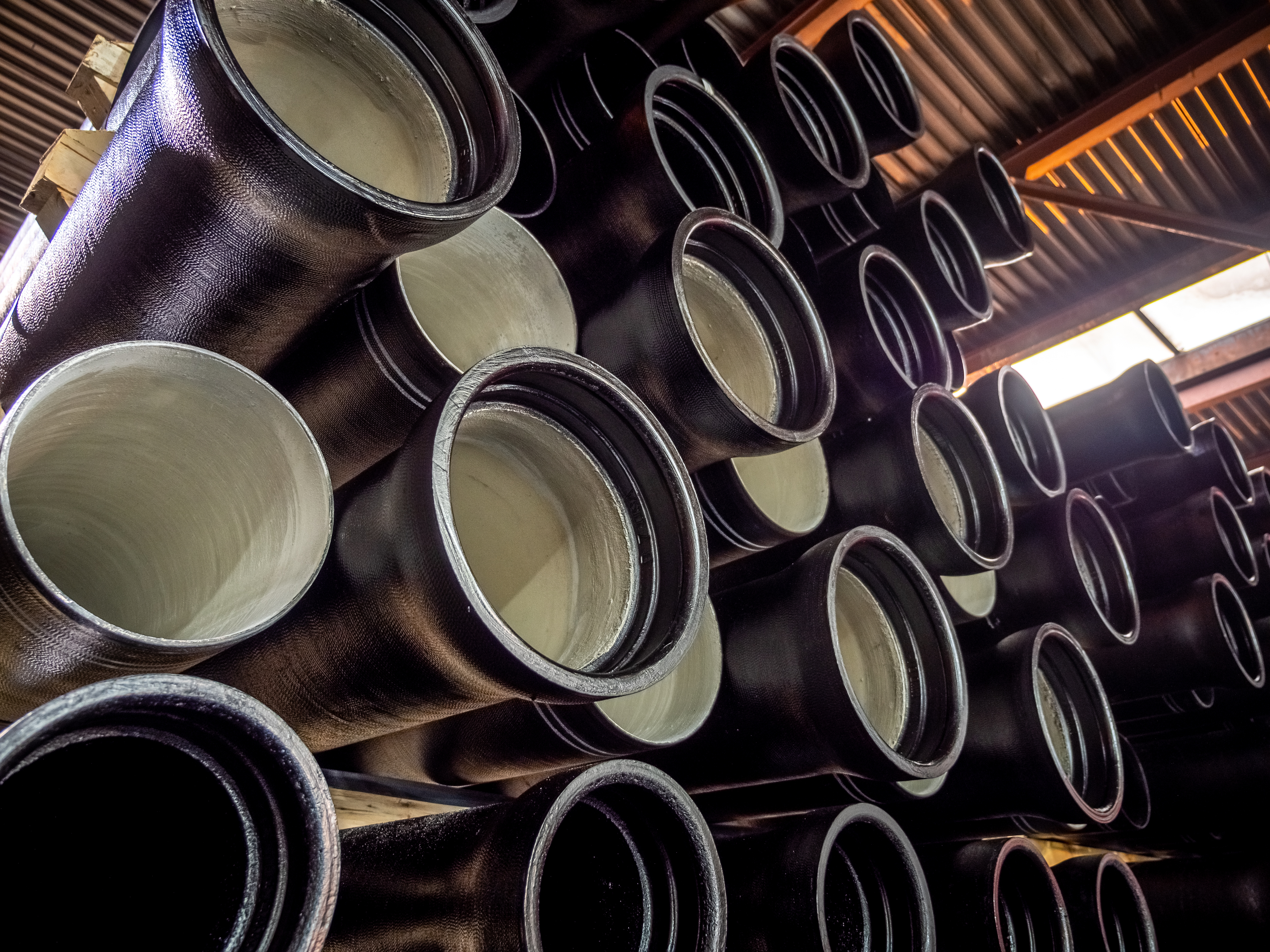

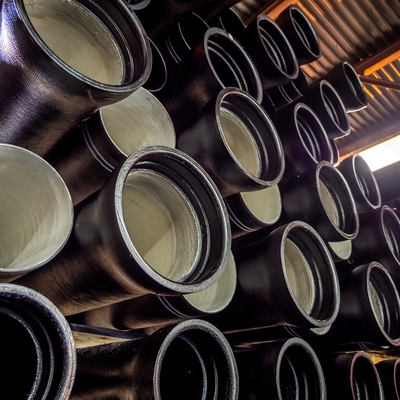

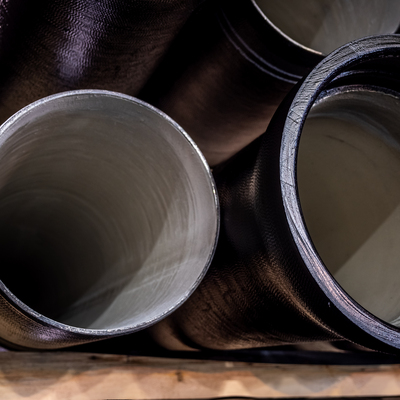

Since 1922, there have been many improvements in the production of cement-mortar-lined iron pipe. Cement-mortar lined pipes are centrifugally lined at the plant to ensure the best possible quality control is maintained and that a uniform thickness of mortar is fully distributed throughout the entire length of the pipe. Cement-mortar linings are smooth, generating high flow coefficient numbers.
Modern innovations in the cement-lining and high-speed rotational wring-out process for Ductile iron pipe (DI pipe) have made the standard “design value C of 140” a functionally conservative number. Numerous flow tests on pipelines installed in the past 20 years have demonstrated in-service performance C values of 150 and higher.
How Does Cement-Mortar Lining Prevent Tuberculation?

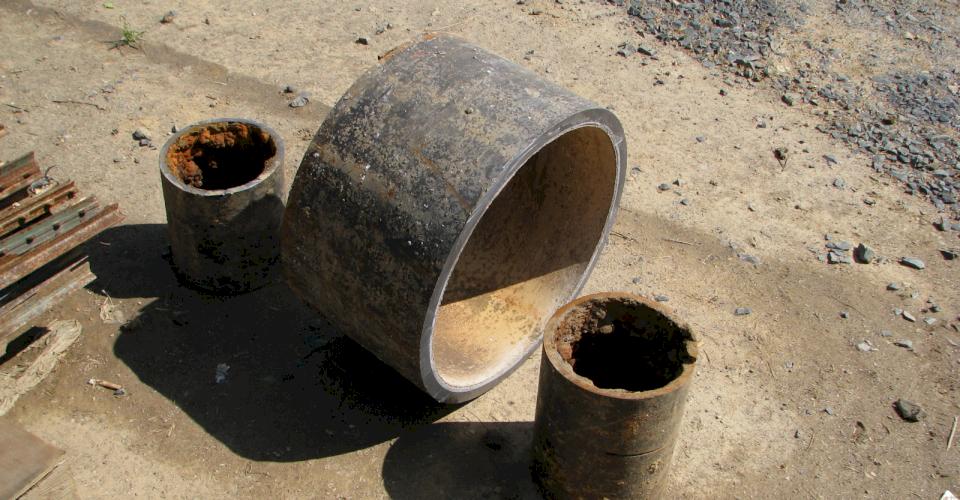

Cement-mortar linings prevent tuberculation by creating a high alkaline environment (pH) at the cement/iron pipe wall interface and providing a physical barrier to the water. The water will not be in physical contact with the iron pipe wall, and therefore the possibility of any iron-oxide reaction is eliminated.
Ductile iron pipe installed in water systems today is furnished with a cement-mortar lining unless otherwise specified by the owner. Quite honestly, it has been several years since typical Ductile iron pipe specifications have not required cement-mortar lining.
BOTTOM LINE IS:tuberculation will not be an issue if using cement-mortar lined ductile iron pipe in your system. Minor exceptions in the cement lining of a pipe or fitting, such as spalling at a cut end, have not been shown to promote or permit tuberculation of any measure.
The Turbuculation Myth Busted
If you are being told by someone that you should be concerned with tuberculation in your cement-mortar lined Ductile iron pipe water system, please have them contact us so we can alleviate their concerns. Our industry has often seen alternate (substitute) piping materials raising “the tuberculation issue” with photographs that are disingenuous at best in that they feature older unlined/bare metal flow surfaces without being stated as such.
Utilities or municipalities who have concerns that their water may be aggressive to cement-mortar linings without seal-coat are encouraged to follow the procedure detailed in Section II.A, “Use of Seal-Coat,” in the Foreword to the ANSI/AWWA C104/A21.4 Standard to determine if a cement-mortar lining, without seal-coat, will impart objectionable hardness or alkalinity to the water.
Our industry is unaware of any potable water distribution system in the United States where standard cement-mortar lined Ductile iron pipe is not applicable. Cement-mortar lined DI pipe is considered suitable for continuous use at pH between 4 and 12 for seal-coated linings and between 6 and 12 for non-seal-coated linings. For service with pH outside this range, please feel free to reach out to one of McWane Ductile's product engineers or the Ductile Iron Pipe Research Association (DIPRA).
A pipe lining must initially provide a high Hazen-Williams flow coefficient of “C” and have enough durability to maintain a high flow coefficient over many years of service. Numerous flow tests have been conducted on operating pipelines throughout the United States to determine how well cement-mortar linings meet these basic requirements. Tests on new and old water mains have established the average value of “C” that can be expected of new cement-mortar lined iron pipe and have also provided a measure of the continued effectiveness of such linings over extended periods of service.

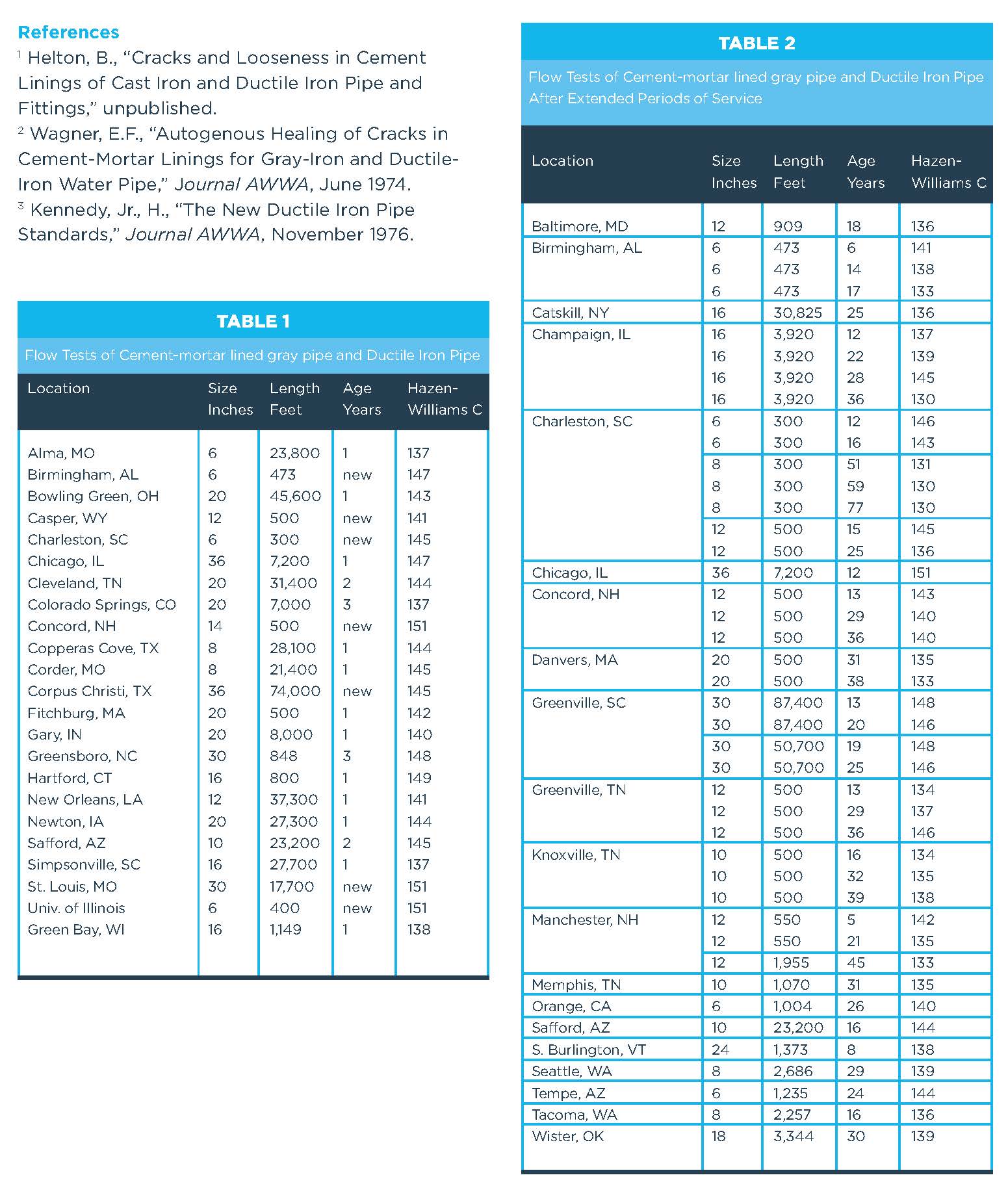

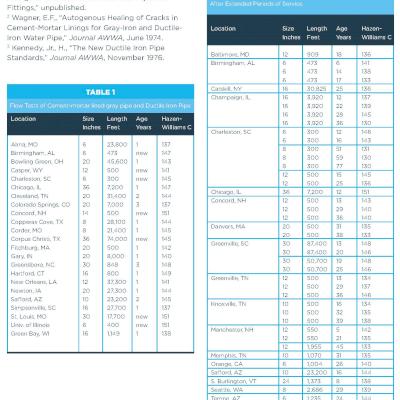

Table 1 below presents the results of several friction flow tests on new, or relatively new, cement-mortar lined iron pipe. The average value of “C” for new pipe of 4-inch through 36-inch diameter was 144.
Table 2 above presents the results obtained from numerous friction flow tests on cement-mortar lined gray iron pipe and ductile iron pipe installed anywhere from 5 years to 77 years ago. Even the oldest pipes carrying the most aggressive waters continue to exhibit “C” values in the same range as the new cement-mortar lined pipe.
Do you have more questions or concerns?
If you have questions or concerns regarding tuberculation in your Ductile iron pipe water systems or the “C” factor for DI pipe, please contact your local McWane Ductile representative. We will be more than happy to visit and discuss this with you. We also recommend that you visit Dipra.org and read their paper on “Cement-Mortar Linings for Ductile Iron Pipe.”
Check Out All Our Digital Offerings
Special recognition goes to Terry Lynch, McWane Ductile General Sales Manager - Southern Region, who passed in 2021 for contributing to this #IronStrong Blog.
