Can McWane Ductile Provide Lay Schedules and Line Drawings?

By Cory Humphreys Jeff Henderson   12/22/2020  In Our Company Services Technical

Whether you are assembling a toy, playing a game, or installing a waterline…where do you go when you're unsure what to do next?

Read the instructions!

For the most part, Ductile iron pipe (DI pipe) is straight forward and relatively easy to install by qualified contractors in most situations. In fact, one of the advantages of using DI pipe in comparison to steel or concrete pressure pipe is the flexibility of making changes in the field, versus pipe that is custom fabricated to be utilized exactly as called out on the plans.

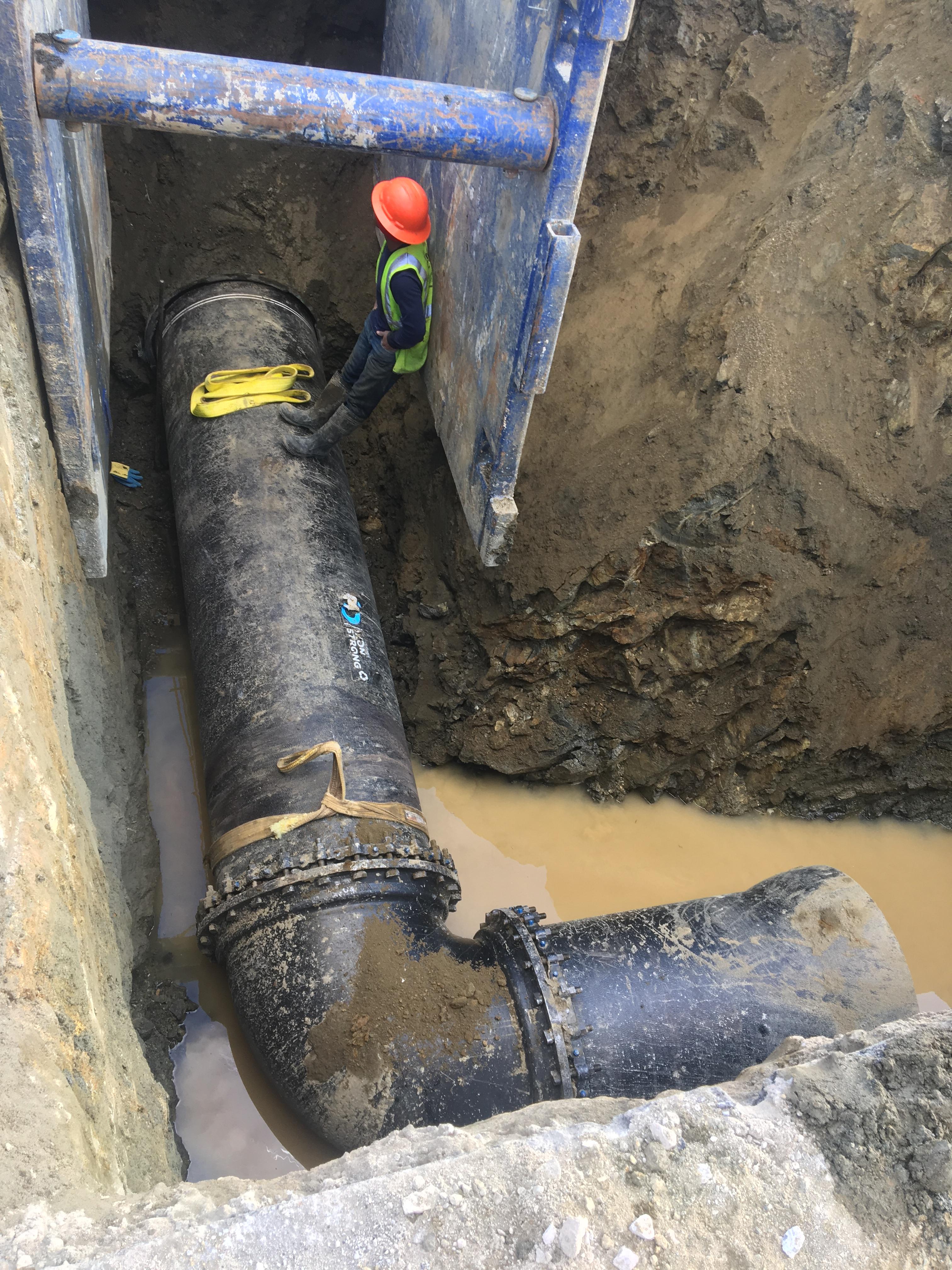

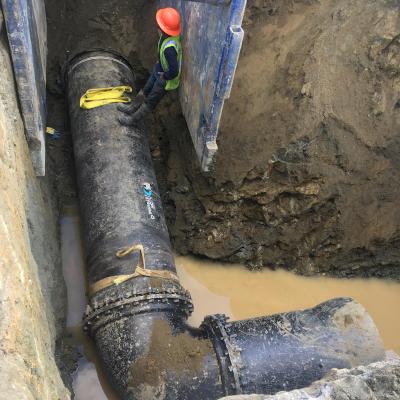

Ductile iron pipe installation in Rockhill, SC.

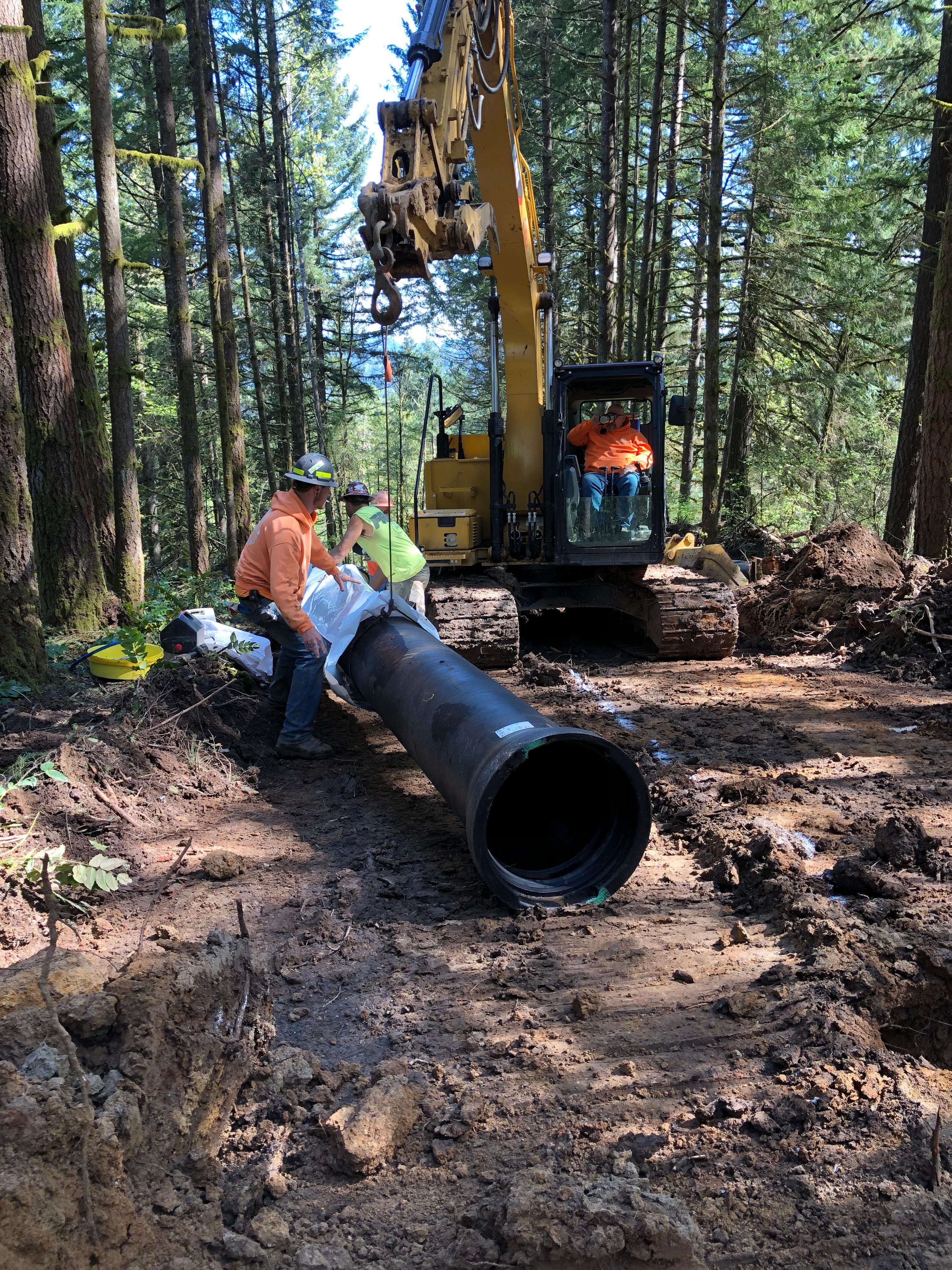

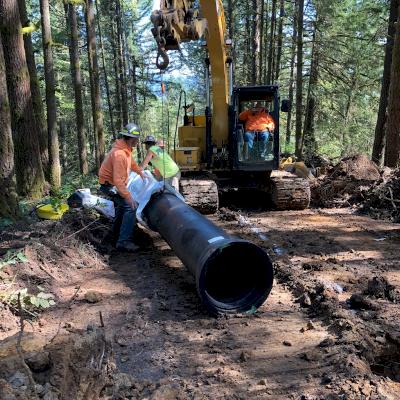

Ductile iron pipe installation in Clakamus, OR.

However, when plans and/or specifications with Ductile iron do call out detailed items like restraint requirements, whether using mechanical joint fittings with restraint or restrained joint TR Flex® fittings, McWane Ductile can provide, detailed Lay Schedules and Line Drawings for submittal and installation requirements.

What is the Difference Between a Lay Schedule and a Line Drawing?

Lay Schedules use station numbers to calculate the length of pipe required to place the fittings, valves, and appurtenances in the desired location. These are math-based spreadsheets that detail the piping necessary to complete the project.

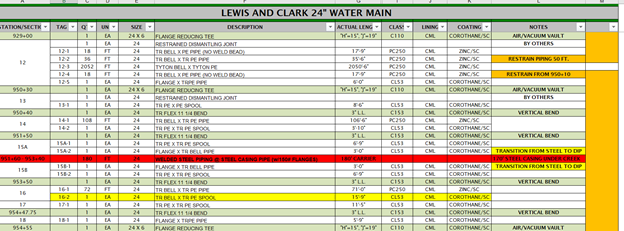

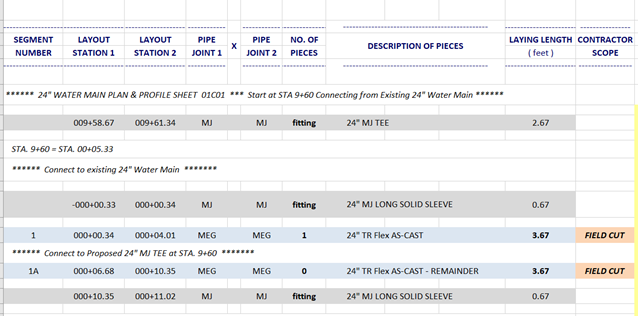

Sample of a McWane Ductile Lay Schedule.

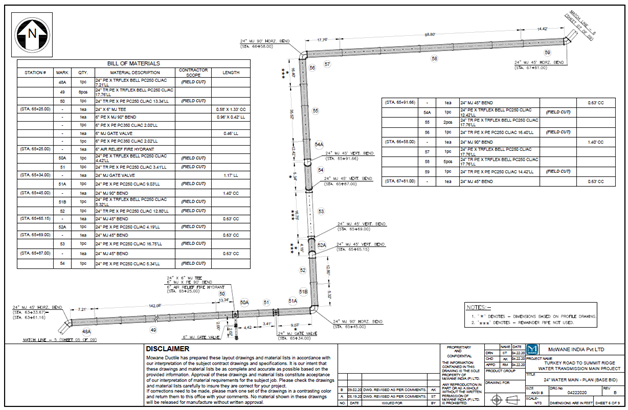

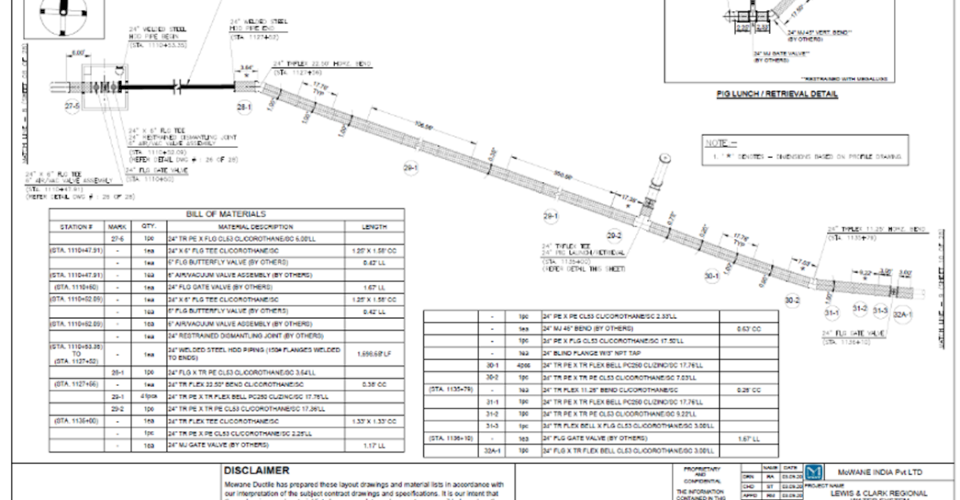

Line Drawings are a pictorial diagram of what piping is necessary for the project. Line drawings show all the pipe bends and branches of the project. Some would say the line drawings are the IKEA® depiction of how to build the line.

Both Line Drawings and Lay Schedules show the list of material needed for the project in details necessary to order the piping.

These Lay schedules and Line drawings are a page-by-page instruction manual for installing your project. Pipe, valves, fittings, bores, etc., are called out in order of their installation by station location. Line Drawings are provided to show both, the plan view and the profile view of the line being installed.

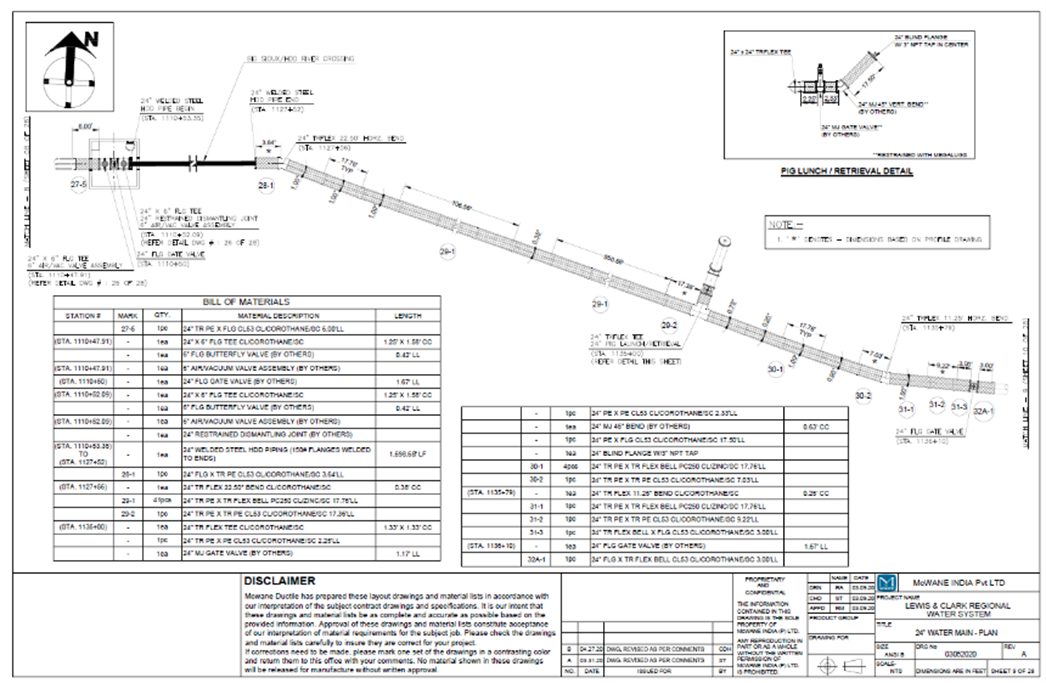

Plan View

The plan view will show the pipeline alignment, appurtenances, station numbers, quantities, lengths, and more, along with a bill of material used on each page. Items specially fabricated to go in a specific spot in the line may be given a "mark number," matching a mark on the actual piece informing the customer where that item is to be installed.

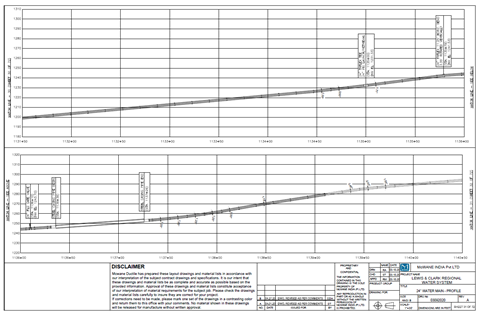

Profile Views

Profile views will show the pipeline elevations from a horizontal perspective.  The profile shows the depth of bury or cover over the line.  It can show fittings used to move the line vertically versus changing alignment direction on the plan drawings.

Profile Skew

As with Design/Bidding documents, the profile drawings are skewed with different scales for the vertical and horizontal dimensions. What may look like a 45-degree elevation change may only be an 11 ¼ or even less with bell deflection. Some of these profiles are skewed at 5 feet per inch Vertical and 50 feet per Inch Horizontal. This can create a discrepancy between scales and could make a mountain out of a molehill!

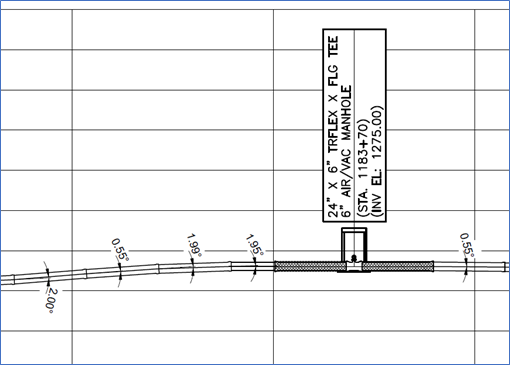

Both plan and profile views can also show where pipe joints may utilize allowable, vertical, and horizontal deflection, to maintain alignment and grade when subtle direction changes don't require the use of fittings.

Both views also show where the restrained joint pipe begins and ends, syncing with the stations called out on the lay schedule. As you can see here, the dark shaded piping is restrained TR Flex pipe.

Even on projects where you can still take advantage of making cuts in the field, the lay schedule and line drawings can show the exact place a piece is to be “field cut” as needed.

Lay Schedules and Line Drawings are not provided as a standard option on all orders. Some project owners and/or engineers may require them as part of their spec requirements. If you need them on your project, please reach out to your local McWane representative to coordinate this process. We will need to know a few things to get them started, for example: what is your starting point, and what direction are you installing the line. It can be a back and forth process to get everything just right, but once you have them completed, all you will have to do from there is read the instructions!

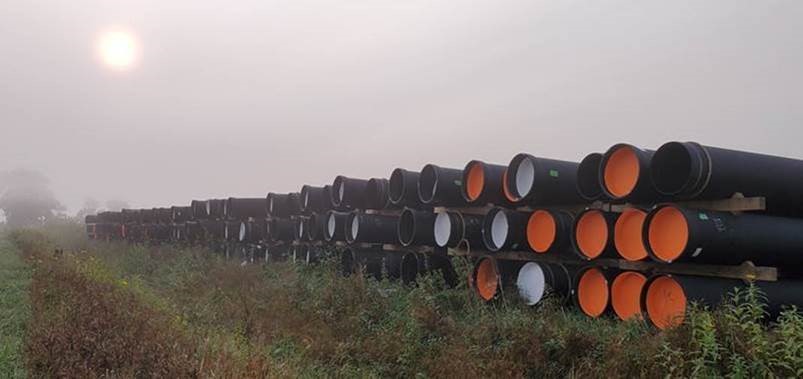

Ductile iron pipe awaits installation.

Need Assistance with Your Waterworks Project?

If you have any questions regarding Lay Schedules and Line Drawings for your water or wastewater infrastructure project, or anything DI pipe related, please feel free to contact your local McWane Ductile Sales Representative.

We have team members who've managed small and large water utility systems, served in engineering consulting firms, and bring decades of experience in solving field issues involving pipeline construction and operation. From design to submittal, to installation, we strive to provide education and assistance to water professionals throughout the water and wastewater industry.

Check Out All Our Digital Offerings

  • More articles and videos from our Iron Strong Blog
  • Training Opportunities with McWane Ductile
  • The McWane Pocket Engineer
  • Engage with us on LinkedIn
  • Follow us on Facebook
  • Follow us on Twitter

Subscribe to the Iron Strong Blog

Share on social media

  • Print this Article

Cory Humphreys

Cory Humphreys, Technical Services Manager for McWane Ductile, oversees the Estimating Department for the Treatment Plant Division. He assists with detailed take-offs, line drawings, and lay schedules to assist with customer project needs. "I believe what motivates me is solving a customer's problem by thinking outside of the box," says Humphreys.
Cory has been with McWane Ductile for 11 years and helps manage complex treatment plant projects and large transmission main projects. Cory has two Associates Degrees in CADD Drafting and Design and Automotive Technologies from Zane State College. In 2008, he graduated with a Bachelor's Degree in Technical Services and Project Management from Ohio University.
"I live in a very small village in rural Ohio, where I am the village clerk and maintain the finances. In my spare time, I enjoy spending time with my wife and kids, working on classic cars, and exploring the great outdoors, says Humphreys. Faith, Family, and Friends keep me inspired."
Cory's favorite quote is, "It always seems impossible until it is done." - Nelson Mandela.

Jeff Henderson

Jeff Henderson is the National Account Manager for McWane Ductile. He has over 40 years of experience in waterworks, industrial, and irrigation transmission pipe and fitting sales and solutions. Jeff has worked with U.S. and International pipe manufacturers, distributors, designers, and installers using many pipe materials, including Ductile Iron, PVC, HDPE, Profile Wall, Steel, A-C, PCCP, and others, in sizes from ½-inch to over 2500mm (100-inch) diameters. Jeff can be reached at Jeff.Henderson@McWaneDuctile.com or by calling (614) 404-4909
